This has a 3-pin line input on a cord and a duplex socket for the item to be tested. This has a limit of 5 amperes.

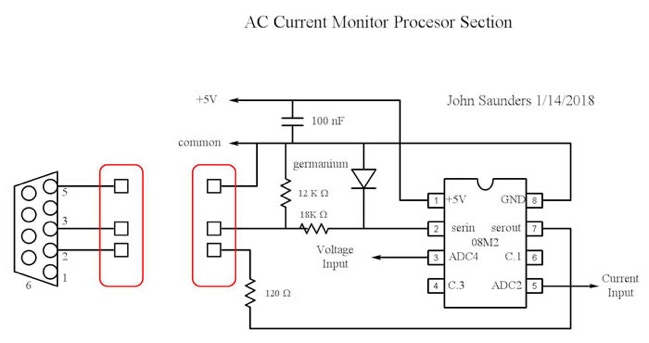

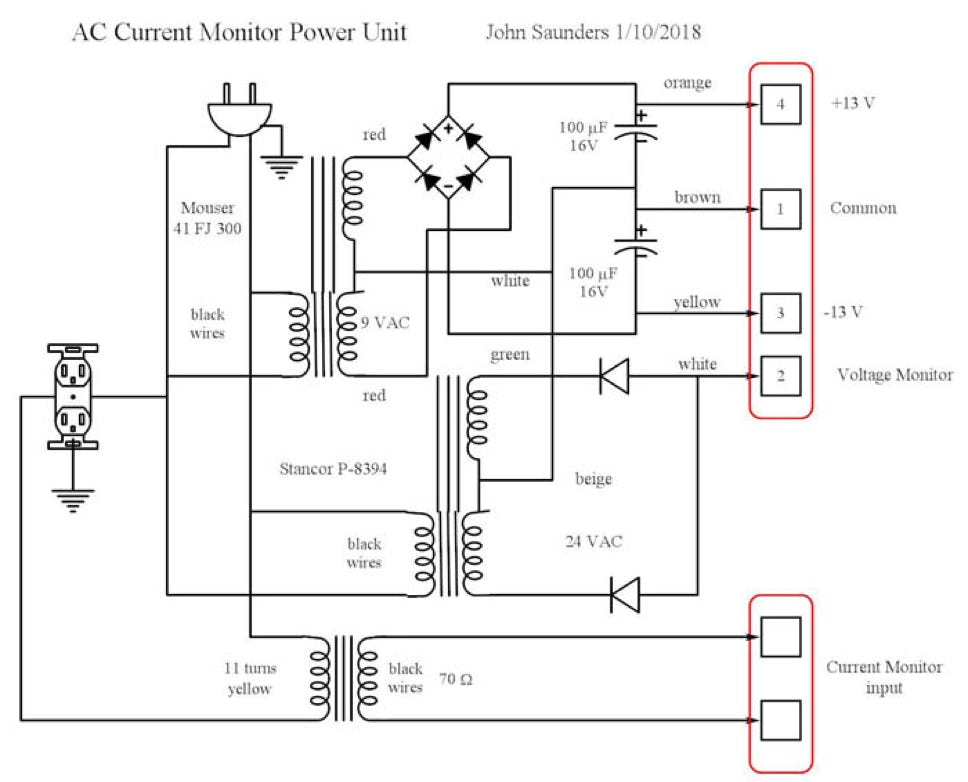

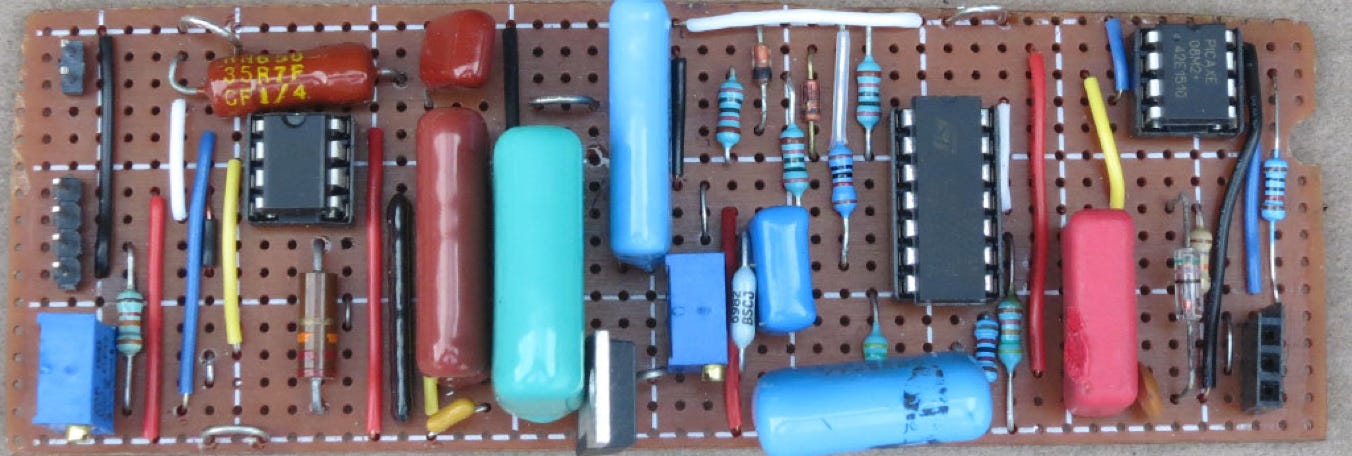

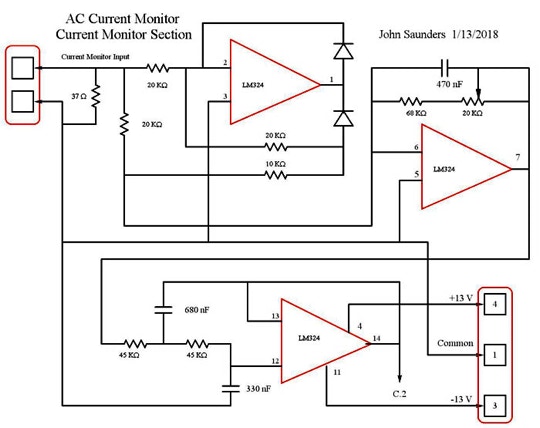

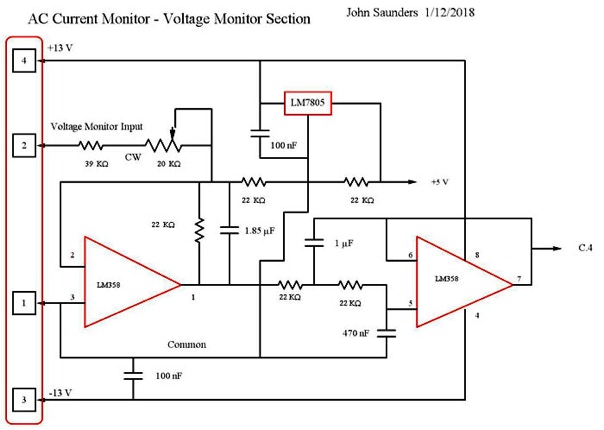

There are two enclosures. The line voltage items are in a blue double-wide standard electrical box. The low-voltage circuit is inside a black plactic box bolted to it. This box has a 9-pin D-connector which is used both for programming the micro-controller and for transmitting the measurements via the Universal Transmitter
#rem Line_Monitor.bas This is for the double blue outlet box
with attached black enclosure with a DB-9 S for the Universal Transmitter
It measures line voltage from 60 to 150 V with a precision of 100 mv
It measures the currenr of the load on either duplex outlet 0-5A with precision 5 MA
John Saunders 10/14/2021 Changed key Code from u to n
#endrem
#picaxe 08M2
rem inputs
symbol VoltPort = C.4
symbol AmpPort = C.2
rem Outputs dir - 'm';
symbol TxOut = C.0
rem variables
symbol scratch = b1
symbol iter = b2
symbol LoopCount = b3
symbol Char = b12
symbol Hunds = b5
symbol Units = b6
symbol Tens = b7
symbol Thous = b8
symbol Chcksum = b10
symbol ChckHex = b11
symbol AmpDiff = w10
symbol OldAmps = w11
symbol DecData = w12
symbol Amps = w13
rem constants
symbol VoltOffset = 494
symbol AmpCorr = 20
symbol AmpDelta = 100
init:
LET LoopCount = 0
LET OldAmps = 0
SETFREQ m4
main:
READADC10 VoltPort,DecData
LET DecData = DecData + VoltOffset
'SERTXD (#DecData,"V,")
LET bptr = 28
GOSUB StoreDec
LET DecData = 0
FOR Iter = 0 TO 4
READADC10 AmpPort,Amps
LET DecData = DecData + Amps
PAUSE 9
NEXT
LET DecData = DecData - AmpCorr
'SERTXD (#DecData,"A",13,10)
LET bptr = 28 + 5
GOSUB StoreDec
IF DecData > OldAmps THEN
LET AmpDiff = DecData - OldAmps
ELSE
LET AmpDiff = OldAmps - DecData
ENDIF
IF AmpDiff > AmpDelta THEN
GOSUB Transmit
ENDIF
LET OldAmps = DecData
INC LoopCount
IF LoopCount > 180 THEN
GOSUB Transmit
ENDIF
IF OldAmps = 0 THEN
PAUSE 1000
ELSE
PAUSE 300
ENDIF
GOTO main
StoreDec:
BINTOASCII DecData,Scratch,Thous,Hunds,Tens,Units
POKE bptr,Thous
INC bptr
POKE bptr,Hunds
INC bptr
POKE bptr,Tens
INC bptr
POKE bptr,Units
INC bptr
POKE bptr,","
RETURN
Transmit:
LET ChckSum = 0
FOR bptr = 28 TO 36
PEEK bptr,char
LET ChckSum = ChckSum + char
NEXT
LET ChckHex = ChckSum / 16
IF ChckHex < 10 THEN
LET ChckHex = ChckHex + "0"
ELSE
LET ChckHex = ChckHex + "7"
ENDIF
LET Tens = ChckHex
LET ChckHex = ChckSum & $F
IF ChckHex < 10 THEN
LET ChckHex = ChckHex + "0"
ELSE
LET ChckHex = ChckHex + "7"
ENDIF
LET bptr = 28
HIGH TxOut
PAUSE 40
LOW TxOut
PAUSE 20
rem 'E is length code = 60 + length between commas
SEROUT TxOut,N2400_4,("14L1776v,E,",@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptr,Tens,ChckHex,13,10)
LET LoopCount = 0
RETURN
