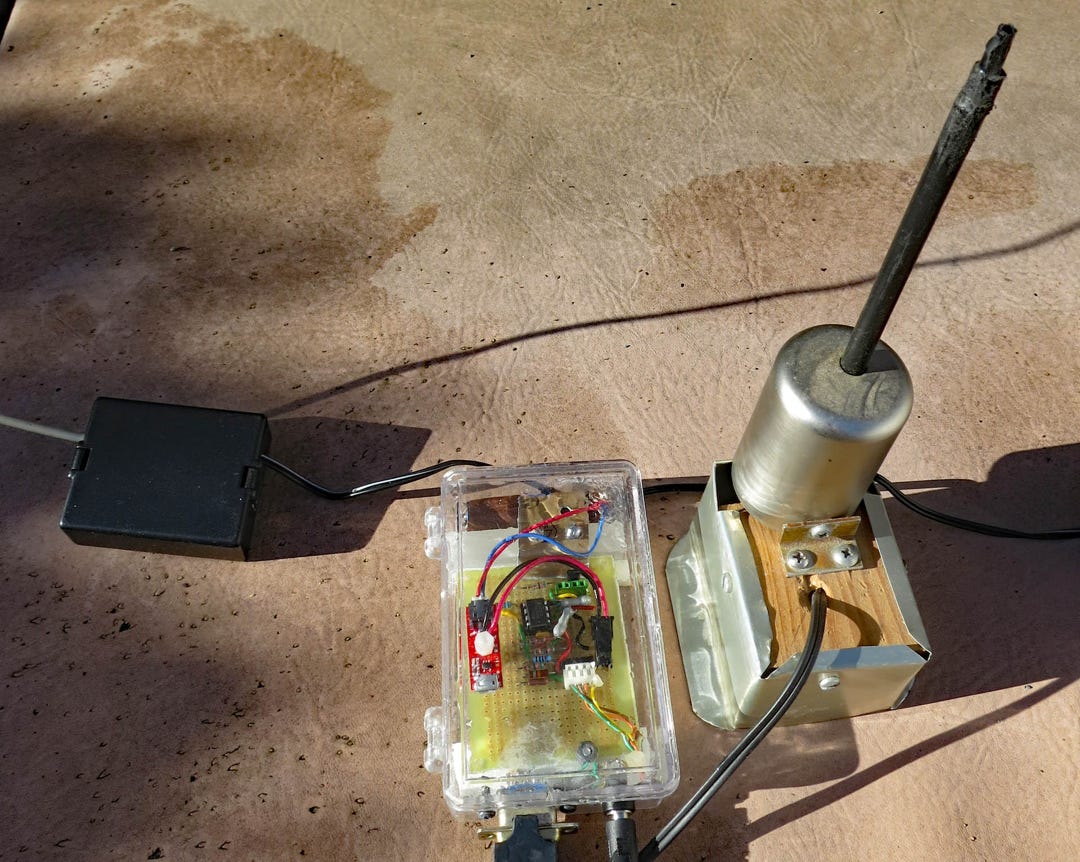

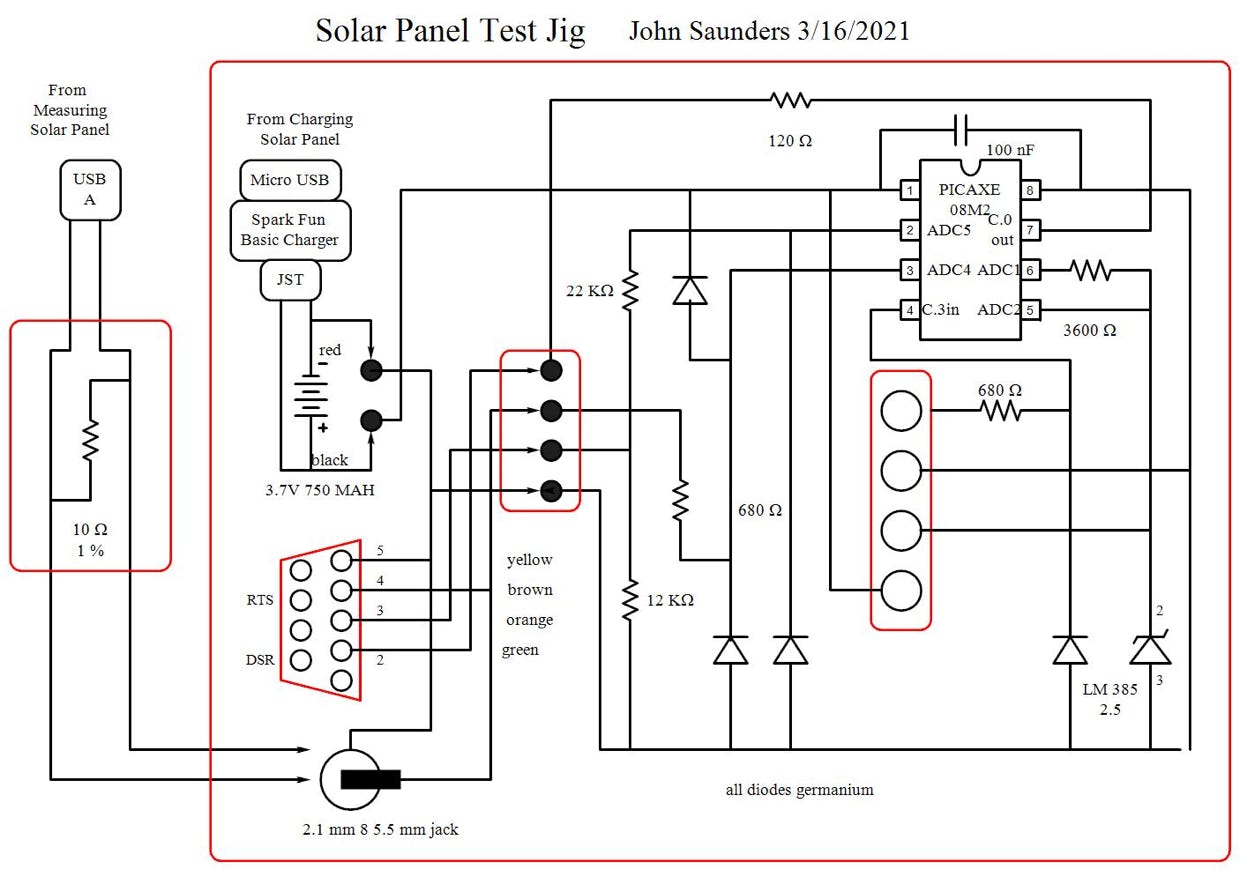

I made this device to measure the total daily charge of a portable solar panel with a 5V output via a USB-A socket. Each of several was tested for weeks. Another solar panel keeps the included battery charged.

After this use it is presently unused but could be used for another test, perhaps with a modified program.

Solar Current Meter Transmitter Picaxe Basic Program

Declarations and Data

#rem SolarCurrentMonitor.bas Transparent box with a

DC-9S for the Universal Transmitter and programming

5.5 x 2.1 coax socket for an external shunt

The multipliers (11*61) + (30*59) + padding = reference diode in mv

LM385 measured at 2.482V

John Saunders 3/19/2021

#endrem

#picaxe 08M2

rem ports

symbol refPort = 2 'Reference diode LM385 nominal 2.5V

symbol refDrive = 1 'LM385 only turned on during measurement

symbol currPort = 4 'Connects to external shunt resistor of 10 ohms

rem variables

symbol iter = b1 'For FOR..NEXT loops

symbol indx = b2 'To distinguish between current and battery voltage measurements

symbol digit = b3

symbol ChckSum = b4

symbol ChckHex = b5

symbol fudge = w8 'To compensate, on average for not measuring the fractionals

symbol vRef = w9 'Measured only once a period since it is stable

symbol Vcc = w10 'Accumulated to get required multil\plier

symbol curr = w11 'Measured at 42 equal intervals per period for averaging and multiplication

symbol genVal = w12

symbol remdr = w13

rem constants

symbol VccPad = 41

symbol currPad = 9 'Modified value to compensate for 10 ohm shunt inaccuracy

symbol keyCode = "p" 'Logged as

symbol interval = 56 'To get 90-second period

Init and Main

init:

SETFREQ k125 'To reduce battery current drain to 200 microamps

LOW refDrive

LET Vcc = 0

LET curr = 0

main:

HIGH refDrive

PAUSE 1

READADC10 refPort,vRef

LOW refDrive

LET fudge = vRef / 2 'One-half

#rem The measurement is made in steps for these reasons:

1. The solar current changes frequently in cloudy days

2. Limited to 16-bit variables and no floating point

3. Generates a multiplication for the reference voltage

#endrem

rem Once a period calculation makes up tje sum and then transmits

LET genVal = 1024 * VccPad + fudge

LET Vcc = genVal/vRef + Vcc 'Final accumulation for battery voltage

READADC10 currPort,genVal 'Then for solar current

LET genVal = currPad * genVal + fudge

LET curr = genVal / vRef + curr

LET indx = 0 'Just a flag

GOSUB store

LET indx = 4

GOSUB store

GOSUB transmit

LET Vcc = 0

LET curr = 0

PAUSE interval

#rem The first of 2 multiplication steps.

The multipliers are chosen to be prime,

to be near to 63 (the limit) for 16 bits

to be the same for both Vcc and current

to be within 63 for both Vcc and current

#endrem

FOR iter = 1 TO 30

READADC10 currPort,genVal

LET genVal = 59 * genVal + fudge

LET curr = genVal / vRef + curr

LET genVal = 59 * 1024 + fudge

LET Vcc = genVal / vRef + Vcc

PAUSE interval

FOR iter = 1 TO 11

READADC10 currPort,genVal

LET genVal = 61 * genVal + fudge

LET curr = genVal / vRef + curr

LET genVal = 61 * 1024 + fudge

LET Vcc = genVal / vRef + Vcc

PAUSE interval

GOTO main

Sub-programs

store: 'Imaging the transmitter message in ram

IF indx = 0 THEN

LET bptr = 28

LET genVal = curr

ELSE

LET bptr = 34

LET genVal = Vcc

ENDIF

LET digit = genVal/1000 'Digit #3

LET digit = digit + "0" 'Ascii

LET @bptrinc = digit

IF indx = 4 THEN

LET @bptrinc = "."

ENDIF

LET remdr = genVal//1000 'Remainder for digit #3

LET digit = remdr/100 'Digit #2

LET digit = digit + "0" 'Ascii

LET @bptrinc = digit

LET genVal = remdr//100 'Remainder for digit #2

LET digit = genVal/10 'Digit #1

LET digit = digit + "0" 'Ascii

LET @bptrinc = digit

IF indx = 0 THEN

LET @bptrinc = "."

ENDIF

LET digit = genVal //10 'Least significant digit

LET digit = digit + "0" 'Ascii

LET @bptrinc = digit

LET @bptrinc = ","

RETURN

transmit:

rem calculate the checksum and add to message

LET ChckSum = 0

FOR bptr = 28 TO 38

LET ChckSum = ChckSum + @bptr

LET bptr = 39

LET @bptrinc = "," '37

LET ChckHex = ChckSum / 16

IF ChckHex < 10 THEN

LET ChckHex = ChckHex + "0"

ELSE

LET ChckHex = ChckHex + "7"

ENDIF

LET @bptrinc = ChckHex

LET ChckHex = ChckSum & $F

IF ChckHex < 10 THEN

LET ChckHex = ChckHex + "0"

ELSE

LET ChckHex = ChckHex + "7"

ENDIF

LET @bptr = ChckHex

SETFREQ m4

rem transmit by UHF radio with sync pulse, message type character (p) and message length code (G)

LET bptr = 28

HIGH C.0

PAUSE 20

LOW C.0

PAUSE 10

rem length char = ASCII of 60 + chars between and not including the bracketing end commas

rem 28 29 30 31 32 33 34 35 36 37 38 39 40 41

SEROUT C.0, N2400_4,("14L1776",keyCode,",G,",@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc,@bptrinc, @bptrinc,@bptrinc,@bptr, 13, 10)

SETFREQ k125

RETURN
